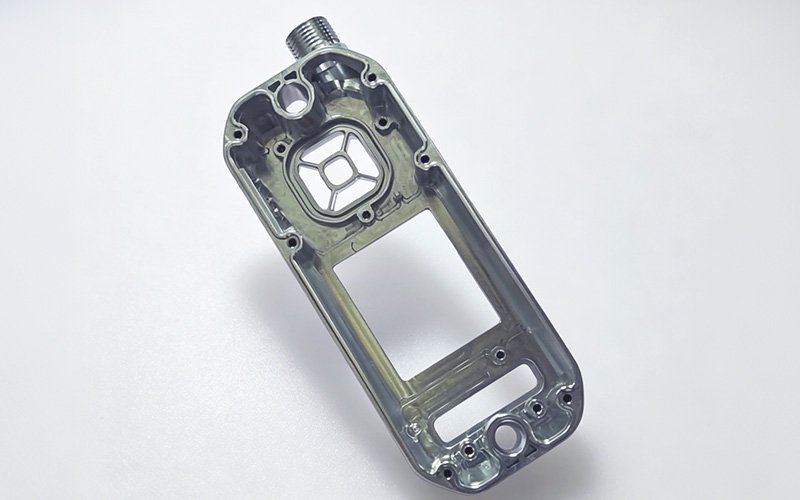

This is a prototype enclosure we machined for a handheld measurement instrument. The part features an open-frame structure with a threaded connector port on top, a large rectangular cutout on the front face, and a secondary window on the side. The design also includes several countersunk screw holes and chamfered edges throughout.

We machined the part from a solid billet of aluminum 6061-T6 and delivered the prototype within 7 business days from the date the final 3D model was confirmed. The customer used it to verify assembly fit with internal components and review the overall form factor, then approved the design for production without any changes. We subsequently completed a small production batch using the same CNC process.

Part type: Custom Portable Measurement Instrument Enclosure

Material: Aluminum Alloy 6061-T6

Machining Process: 5-Axis CNC Milling

Surface Finish: As-Machined

This type of aluminum enclosure, produced through CNC prototype machining, works well for a range of portable handheld instruments across different industries. In environmental monitoring, instruments like air quality monitors and gas detectors are taken outdoors regularly, so a housing that is light and holds up to the elements makes a practical difference.

In industrial settings, technicians using handheld NDT instruments tend to prefer machined metal over plastic when the device sees heavy daily use. For electronic measurement, engineers often move between sites with signal analyzers and calibration tools, where keeping the weight down matters.

In geology and exploration, instruments used for soil analysis and field surveying get thrown into bags and used in all kinds of conditions, so the enclosure needs to be tough enough to last.

Compared to stainless steel, AL6061-T6 is significantly lighter, which matters for a handheld device that operators carry in the field for extended periods. Aluminum 6061-T6 also performs well in outdoor conditions. It resists corrosion without surface treatment, and with anodizing applied, it can handle prolonged exposure to humidity, dust, and light rain encountered during field use. For this type of prototype, AL6061-T6 also offers a good balance between cost and performance — it machines efficiently, which helps keep prototype costs reasonable without compromising on the mechanical properties the part needs.
